In our relentless quest to make your experience as seamless and immersive as possible, we have gone to great lengths to simplify this process, too.

You will find a little dark-tinted plastic cover behind the throttle on your pedals. This houses the PCB for your entire pedal set (and your clutch, too, should you decide to add one). We have opted for a single USB Type-C interface to make things simple to connect and maintain.

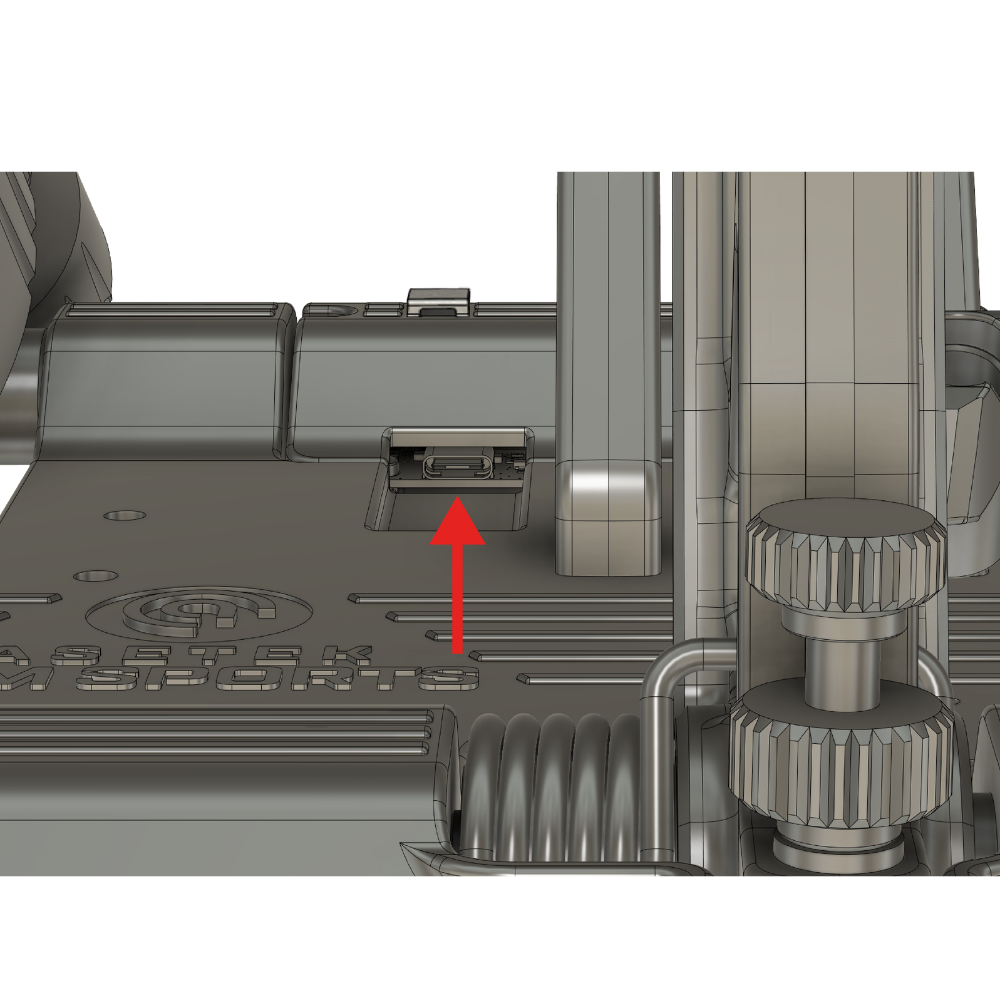

When installing your pedals, you will find that the USB Type-C female connector is pointing towards the throttle, not towards the pedal set’s rear. This was a very intentional choice on our side to make sure you will not coincidentally break the connector.

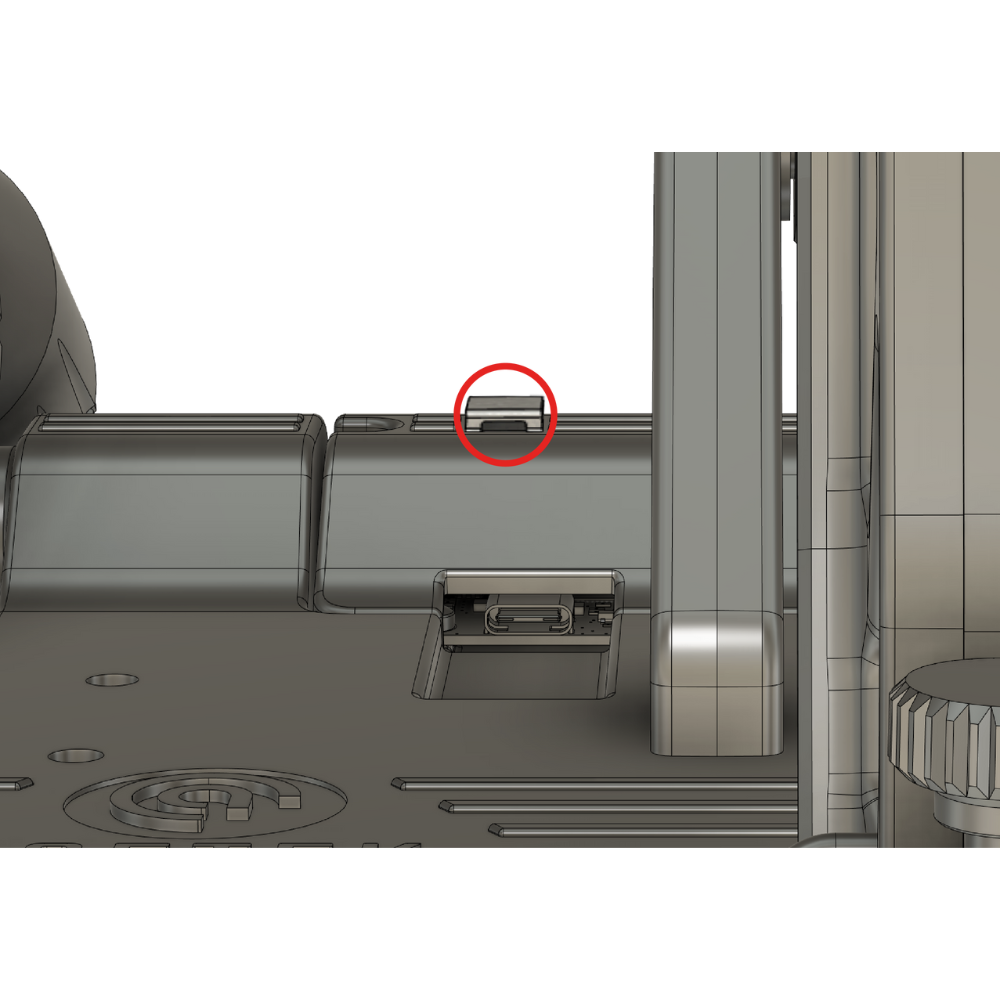

Note also the small cable clip on the top of the cover. We want to make sure that your cable is not strained and suggest you use the provided clip to alleviate any potential strain on the cable.

Connecting is now a simple task.

• If you connect directly to your PC, we recommend using the USB Type-C to USB Type-A cable.
• Plug the Type-C end into your pedals and the Type-A end into your PC. Your PC will recognize the pedals.
• Proceed to install RaceHub™ and configure your pedals to your liking (See section 5 for instructions).
• If you connect an Asetek SimSports® Direct-Drive wheelbase, we suggest using the USB Type-C to USB Type-C cable, to connect your pedals directly to your wheelbase.
• Plug one end into your pedals and the other into your wheelbase.
• Open RaceHub™ and configure your pedals to your liking.
